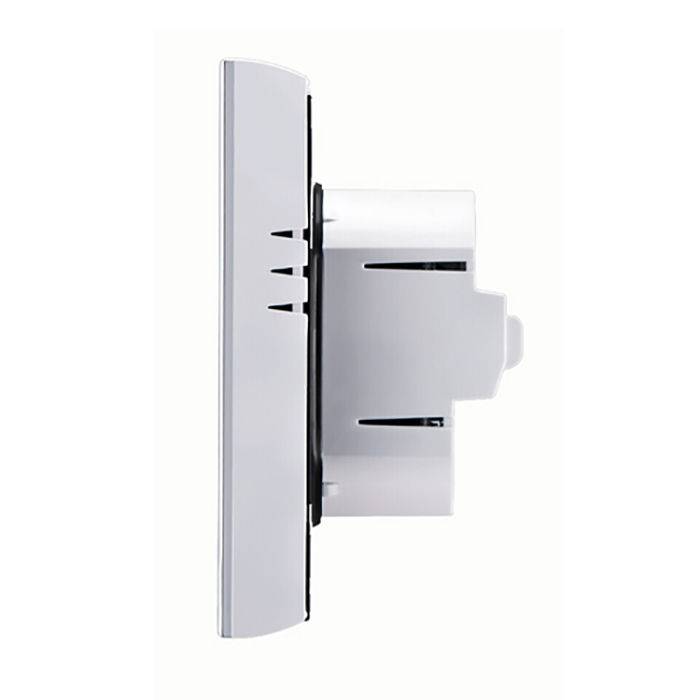

BAC-1000 Thermostat

*Acrylic face plate
*Large, backlit display
*Sleek, contemporary design
*Elegant chrome frame
*Feather touch control panel
*5+2 six period per day programming
*Simple, one-touch tem. perature control over-ride
*Pre-set temperatures maintained within +/-1°C
*Internal and external sensors allow control of both air and/or floor temperatures
*Suitable for installation in a standard single pattress box or European 60mm round box
*White/Black Two/Four pipe optional
*RS485/MODBUS communication optional


1*Thermostat
2*Screws
1*English manual

Product weight: 0.2800 kg
Package weight: 0.3000 kg
Product size (L x W x H): 8.60 x 8.60 x 4.00 cm / 3.39 x 3.39 x 1.57 inches
Package size (L x W x H): 9.00 x 9.00 x 5.00 cm / 3.54 x 3.54 x 1.97 inches

A: two pipe; control fan coil unit and two wired motorized valve
M: two pipe; control fan coil unit and 0-10V motorized valve
E: Four pipe; control fan coil unit and two wired heat valve and two wired cool valve
N: Modbus RTU communication
B: BACnet communication
W: Wi-Fi connection
K: Keycard
T: Clock
W2: Window
P: Programmable
L: Backlight
E: External sensor
